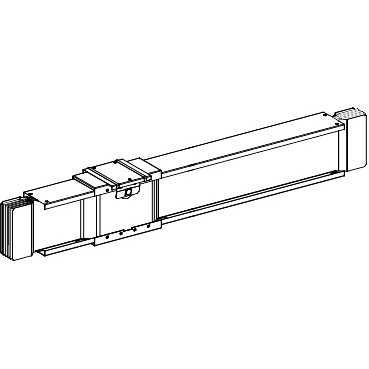

KTC2500EB320 - Canalis - Cu length for bolt-on tap-off unit - 2500A - 3L+PE - 2m standard, Schneider Electric
- Product Code: KTC2500EB320
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2,315.63 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
BUSBAR TRUNKING
busbar description
DISTRIBUTION LENGTH
device short name
KTC
tap-off unit compatibility
bolt-on tap-off unit from Canalis - KT
device application
HIGH POWER DISTRIBUTION
material
COPPER
[Ie] rated operational current
2500 A at 35 °C
polarity
3L + PE
number of tap-off outlets
1
nominal output current
400...1250 A
earth conductor
STANDARD EARTH
short-circuit level
STANDARD VERSION
length
2000 MM
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
113 KA
[Ipk] rated peak withstand current
248 KA
electrical connection
BOLTED CONNECTION
radiated magnetic field
1.3 T
thermal stress limit
6400 A.S
THDI
33...100 %, maximum load current: 1600 A
voltage drop
with cos Æ=0.8, 0.0018 V at 50 Hz with 1A for 100 m long
linear resistance
L : X1 35 °C= 0.011 mΩ/m at Inc and 50 Hz
mounting mode
BY HOOK
mounting support
PENDANT
installation direction
HORIZONTAL
neutral position
RIGHT
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
204 MM
colour
RAL 9001 : white
product weight
88 KG
linear load
44 KGM
