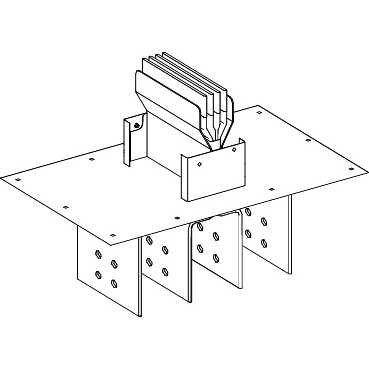

KTC2500ER41 - Canalis - Cu feed unit N1 oil trans + switchboard - 2500A - 3L+N+PE - standard, Schneider Electric
- Product Code: KTC2500ER41
- Brand: Schneider Electric
- Availability: To be confirmed
- € 903.73 Ex Tax:
MAIN CHARACTERISTICS
range
CANALIS
range of product
CANALIS
product name
KT
product or component type
STRAIGHT FEEDER TRUNKING
device short name
KTC
device application
FEEDER LENGTH
supply
OIL IMMERSED TRANSFORMER
material
COPPER
[Ie] rated operational current
2500 A at 35 °C
neutral position
RIGHT
earth conductor
STANDARD EARTH
short-circuit level
STANDARD VERSION
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
80 KA
[Ipk] rated peak withstand current
176 KA
radiated magnetic field
1.3 T
thermal stress limit
6400 A.S
THDI
33...100 %, maximum load current: 1600 A
voltage drop
with cos Æ=0.8, 0.0018 V at 50 Hz with 1A for 100 m long
linear resistance
L : X1 35 °C= 0.011 mΩ/m at Inc and 50 Hz
mounting mode
BY SCREWS
mounting support
PLATE
polarity
3L+N+PE
number of tap-off outlets
0
standards
IEC 61439-1
dimension type
FIX
connection pitch
115 MM
width
545 MM
depth
350 MM
height
direction 1 : 235 mm
colour
RAL 9001 : white
linear load
60 KGM
