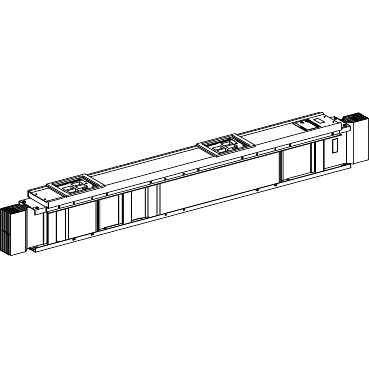

KTC4000EH720 - Canalis - Cu length KH plug-in tap-off unit - 4000A - 3L+N+PER - 2m standard, Schneider Electric
- Product Code: KTC4000EH720
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8,453.91 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
BUSBAR TRUNKING
busbar description
DISTRIBUTION LENGTH
device short name
KTC
tap-off unit compatibility
plug-in tap-off unit from Canalis KH
device application
HIGH POWER DISTRIBUTION
material
COPPER
[Ie] rated operational current
4000 A at 35 °C
polarity
3L+N+PE
number of tap-off outlets
2
nominal output current
100...630 A
earth conductor
REINFORCED
short-circuit level
REINFORCED VERSION
length
2000 MM
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
120 KA
[Ipk] rated peak withstand current
264 KA
electrical connection
SLIDING CONTACT
radiated magnetic field
2.1 T
thermal stress limit
14400 A.S
THDI
33...100 %, maximum load current: 2500 A
voltage drop
with cos Æ=1, 0.001 V at 50 Hz with 1A for 100 m long
linear resistance
L : X1 35 °C= 0.007 mΩ/m at Inc and 50 Hz
mounting mode
BY HOOK
mounting support
PENDANT
installation direction
HORIZONTAL
neutral position
RIGHT
tap-off unit interval
800 MM
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
324 MM
colour
RAL 9001 : white
product weight
184 KG
linear load
92 KGM
