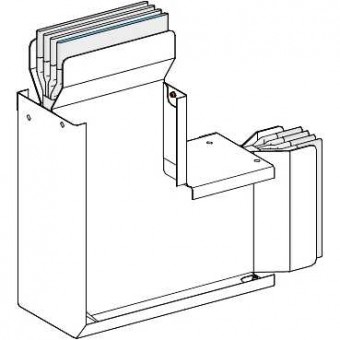

KTC4000LC7B - Canalis - Cu edgewise elbow - 4000A - 3L+N+PER - 401 to 899mm tailored, Schneider Electric
- Product Code: KTC4000LC7B
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5,995.20 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
ELBOW
busbar description
STANDARD
device short name
KTC
device application
CHANGE DIRECTION
material
COPPER
[Ie] rated operational current
4000 A at 35 °C
polarity
3L+N+PE
direction change type
direction 1 : edgewise to upward
operating angle
90
earth conductor
REINFORCED
short-circuit level
REINFORCED VERSION
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
120 KA
[Ipk] rated peak withstand current
264 KA
radiated magnetic field
2.1 T
thermal stress limit
14400 A.S
THDI
33...100 %, maximum load current: 2500 A
voltage drop
with cos Æ=1, 0.001 V at 50 Hz with 1A for 100 m long
linear resistance
L : X1 35 °C= 0.007 mΩ/m at Inc and 50 Hz
neutral position
RIGHT
standards
IEC 61439-1
dimension type
MADE TO MEASURE SHORT BRANCH
width
140 MM
height
direction 2 : 400 mm
length
direction 1 : 400 mm
colour
WHITE RAL 9001
linear load
92 KGM
