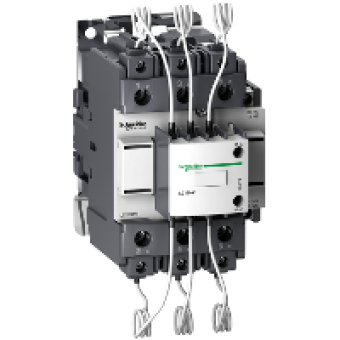

LC1DWK12M7 - TeSys LC1D.K capacitor duty contactor - 3P - 60 kVAR - 415 V - 220 V AC coil, Schneider Electric
- Product Code: LC1DWK12M7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 184.20 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
range of product
TESYS D
product name
TESYS LC1D.K
product or component type
CAPACITOR DUTY CONTACTOR
device short name
LC1DWK
contactor application
POWER FACTOR CORRECTION
utilisation category
AC 6B
poles description
3P
power pole contact composition
3 NO
device location in system
LINE INTERRUPTION
[Ue] rated operational voltage
<= 690 V AC 5060 HZ FOR POWER CIRCUIT
reactive power rating
35 KVAR AT 230 V AC 5060 HZ <= 60 C
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
220 V AC 5060 HZ
auxiliary contact composition
1 NO + 2 NC FOR SIGNALLING CIRCUIT
electrical durability
300000 CYCLES AT UE 400 V
mounting support
DIN RAIL
standards
IEC 60947-4-1
product certifications
CCC
connections - terminals
POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 CABLES 4...50 MM - CABLE STIFFNESS SOLID - WITHOUT CABLE END
tightening torque
POWER CIRCUIT 9 N.M - ON EVERLINK BTR SCREW CONNECTORS
operating rate
100 CYCH
COMPLEMETARY CHARACTERISTICS
auxiliary contacts type
TYPE MECHANICALLY LINKED 1 NO + 1 NC CONFORMING TO IEC 60947-5-1
compatibility code
LC1D
The Schneider Electric LC1DWK12M7 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
