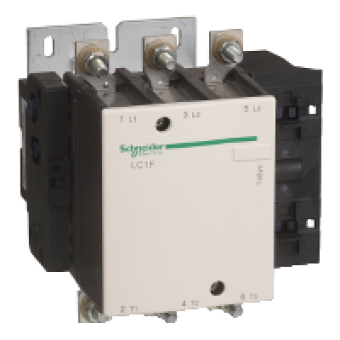

LC1F115BD - TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 115 A - coil 24 V DC, Schneider Electric
- Product Code: LC1F115BD
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product name
TESYS F
product or component type
CONTACTOR
device short name
LC1F
contactor application
MOTOR CONTROL
motor power kW
55 KW AT 380...400 V AC 5060 HZ AC-3
control circuit type
DC STANDARD
[Uc] control circuit voltage
24 V DC
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
200 A AT <= 40 DC
rated breaking capacity
920 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
1100 A <= 40 DC 10 S
associated fuse rating
125 A AM AT <= 440 V
average impedance
0.37 MOHM AT 50 HZ - ITH 200 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
15 W AC-1
mounting support
PLATE
standards
EN 60947-1
product certifications
ABS
connections - terminals
power circuit : bar 2 x ( 20 x 3 mm)
tightening torque
power circuit : 10 N.m
operating time
30..40 MS CLOSING
mechanical durability
10 MCYCLES
operating rate
2400 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
200 A <= 40 C AT <= 440 V AC AC-1
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL
inrush power in W
560 W AT 20 DC
hold-in power consumption in W
4.5 W AT 20 DC
heat dissipation
4.5 W
compatibility code
LC1F
