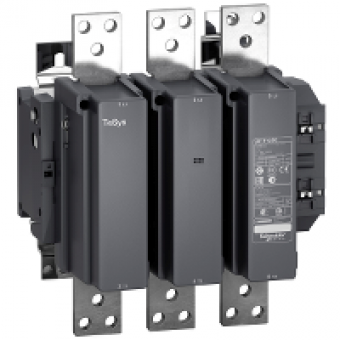

LC1F1250 - TeSys F contactor - 3P(3 NO) - AC-1 - <= 440 V 1260 A - without coil, Schneider Electric
- Product Code: LC1F1250
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2,060.18 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
CONTACTOR
product name
TESYS F
device short name
LC1F
contactor application
RESISTIVE LOAD
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
1260 A <= 40 C AT <= 440 V AC AC-1
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
1260 A AT <= 40 DC
Irms rated making capacity
1890 A AC CONFORMING TO IEC 60947-4-1
rated breaking capacity
1890 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
3000 A <= 40 DC 3 MIN
associated fuse rating
1000 A GG AT <= 440 V FOR POWER CIRCUIT
average impedance
0.12 MOHM AT 50 HZ - ITH 1260 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
120 W AC-1
connections - terminals
power circuit : bar 2
tightening torque
power circuit : 58 N.m
mounting support
PLATE
mechanical robustness
VIBRATIONS CONTACTOR OPEN 2 GN 5...300 HZ
height
338 MM
width
309 MM
depth
255 MM
product weight
19 KG
