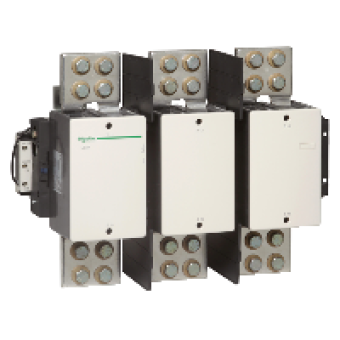

LC1F1700MD - TeSys F contactor - 3P (3 NO) - AC-1 - <= 440 V 1700 A - coil 220 V DC, Schneider Electric
- Product Code: LC1F1700MD
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product name
TESYS F
product or component type
CONTACTOR
device short name
LC1F
contactor application
RESISTIVE LOAD
control circuit type
DC STANDARD
[Uc] control circuit voltage
220 V DC
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
1700 A AT <= 40 DC
rated breaking capacity
2550 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
10000 A <= 40 DC 10 S
associated fuse rating
1600 A GG AT <= 440 V
average impedance
0.1 MOHM AT 50 HZ - ITH 1700 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
200 W AC-1
mounting support
PLATE
standards
EN 60947-1
product certifications
CCC
connections - terminals
control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
tightening torque
control circuit : 1.2 N.m
operating time
50..60 MS CLOSING
operating rate
600 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
1700 A <= 40 C AT <= 440 V AC AC-1
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL
inrush power in W
2100 W AT 20 DC
hold-in power consumption in W
10 W AT 20 DC
heat dissipation
10 W
compatibility code
LC1F
