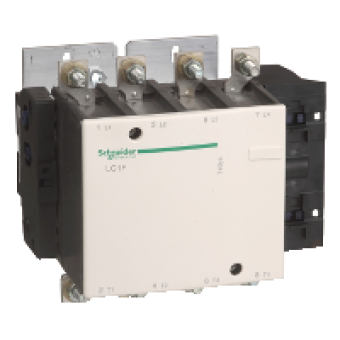

LC1F1854 - TeSys F contactor - 4P(4 NO) - AC-1 - <= 440 V 275 A - without coil, Schneider Electric
- Product Code: LC1F1854
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
CONTACTOR
product name
TESYS F
device short name
LC1F
contactor application
RESISTIVE LOAD
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
4P
power pole contact composition
4 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
275 A <= 40 C AT <= 440 V AC AC-1
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
275 A AT <= 40 DC
Irms rated making capacity
1850 A AC CONFORMING TO IEC 60947-4-1
rated breaking capacity
1480 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
1500 A <= 40 DC 10 S
associated fuse rating
200 A AM AT <= 440 V
average impedance
0.33 MOHM AT 50 HZ - ITH 275 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
25 W AC-1
connections - terminals
power circuit : bar 2 x ( 25 x 3 mm)
tightening torque
power circuit : 18 N.m
mounting support
PLATE
mechanical robustness
VIBRATIONS CONTACTOR OPEN 2 GN 5...300 HZ
height
174 MM
width
208.5 MM
depth
181 MM
product weight
5.45 KG
compatibility code
LC1F
