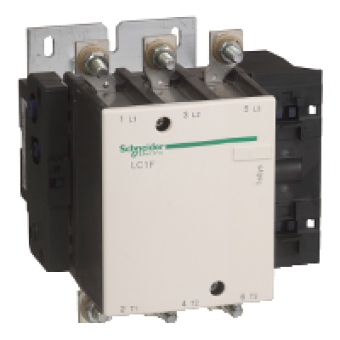

LC1F265B7 - TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 265 A - coil 24 V AC, Schneider Electric
- Product Code: LC1F265B7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product name
TESYS F
product or component type
CONTACTOR
device short name
LC1F
contactor application
MOTOR CONTROL
motor power kW
132 KW AT 380...400 V AC 5060 HZ AC-3
control circuit type
AC 40..400 HZ
[Uc] control circuit voltage
24 V AC 40..400 HZ
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
350 A AT <= 40 DC
rated breaking capacity
2120 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
2200 A <= 40 DC 10 S
associated fuse rating
315 A AM AT <= 440 V
average impedance
0.3 mOhm at 50 Hz - Ith 350 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
37 W AC-1
mounting support
PLATE
standards
EN 60947-1
product certifications
ABS
connections - terminals
control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
tightening torque
control circuit : 1.2 N.m
operating time
40..65 MS CLOSING
mechanical durability
10 MCYCLES
operating rate
2400 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
350 A <= 40 C AT <= 440 V AC AC-1
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL 40...400 HZ
inrush power in VA
650 VA AT 20 C COS 0.9 40...400 HZ
hold-in power consumption in VA
10 VA AT 20 C COS 0.9 40...400 HZ
heat dissipation
8 W
compatibility code
LC1F
