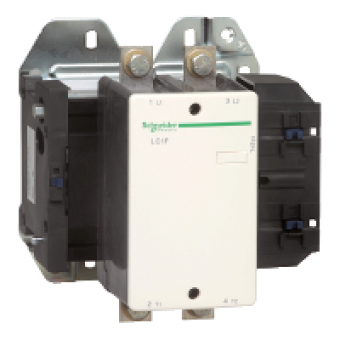

LC1F5002 - TeSys F contactor - 2P(2 NO) - AC-1 - <= 440 V 700 A - without coil, Schneider Electric
- Product Code: LC1F5002
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
CONTACTOR
product name
TESYS F
device short name
LC1F
contactor application
RESISTIVE LOAD
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
2P
power pole contact composition
2 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
700 A <= 40 C AT <= 440 V AC AC-1
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
700 A AT <= 40 DC
Irms rated making capacity
5000 A AC CONFORMING TO IEC 60947-4-1
rated breaking capacity
4000 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
4200 A <= 40 DC 10 S
associated fuse rating
500 A AM AT <= 440 V
average impedance
0.18 MOHM AT 50 HZ - ITH 700 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
88 W AC-1
connections - terminals
power circuit : lugs-ring terminals 2 cable(s) 240 mm²
tightening torque
power circuit : 35 N.m
mounting support
PLATE
mechanical robustness
VIBRATIONS CONTACTOR OPEN 2 GN 5...300 HZ
height
238 MM
width
233 MM
depth
232 MM
product weight
9.75 KG
compatibility code
LC1F
