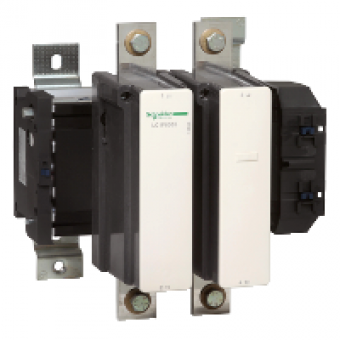

LC1F6302 - TeSys F contactor - 2P(2 NO) - AC-1 - <= 440 V 1000 A - without coil, Schneider Electric
- Product Code: LC1F6302
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
CONTACTOR
product name
TESYS F
device short name
LC1F
contactor application
RESISTIVE LOAD
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
2P
power pole contact composition
2 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
1250 A <= 40 C AT <= 440 V AC AC-1
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
1000 A AT <= 40 DC
Irms rated making capacity
6300 A AC CONFORMING TO IEC 60947-4-1
rated breaking capacity
5040 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
5050 A <= 40 DC 10 S
associated fuse rating
630 A AM AT <= 440 V
average impedance
0.12 MOHM AT 50 HZ - ITH 1000 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
120 W AC-1
connections - terminals
power circuit : bar 2 x ( 60 x 5 mm)
tightening torque
power circuit : 58 N.m
mounting support
PLATE
mechanical robustness
VIBRATIONS CONTACTOR OPEN 2 GN 5...300 HZ
height
255 MM
width
309 MM
depth
304 MM
product weight
15.5 KG
compatibility code
LC1F
