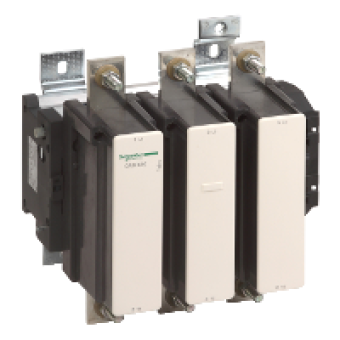

LC1F630E7 - TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 630 A - coil 48 V AC, Schneider Electric
- Product Code: LC1F630E7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product name
TESYS F
product or component type
CONTACTOR
device short name
LC1F
contactor application
MOTOR CONTROL
motor power kW
335 KW AT 380...400 V AC 5060 HZ AC-3
control circuit type
AC 40..400 HZ
[Uc] control circuit voltage
48 V AC 40..400 HZ
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
1000 A AT <= 40 DC
rated breaking capacity
5040 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
5050 A <= 40 DC 10 S
associated fuse rating
1000 A GG AT <= 440 V
average impedance
0.12 MOHM AT 50 HZ - ITH 1000 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
120 W AC-1
mounting support
PLATE
standards
EN 60947-1
product certifications
ABS
connections - terminals
control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
tightening torque
control circuit : 1.2 N.m
operating time
40..80 MS CLOSING
mechanical durability
5 MCYCLES
operating rate
1200 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
1000 A <= 40 C AT <= 440 V AC AC-1
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL 40...400 HZ
inrush power in VA
1650 VA AT 20 C COS 0.9 40...400 HZ
hold-in power consumption in VA
22 VA AT 20 C COS 0.9 40...400 HZ
heat dissipation
20 W
compatibility code
LC1F
motor power range
250...500 KW 380...440 V 3 PHASES
motor starter type
DIRECT ON LINE CONTACTOR
contactor coil voltage
48 V AC STANDARD
The Schneider Electric LC1F630E7 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
