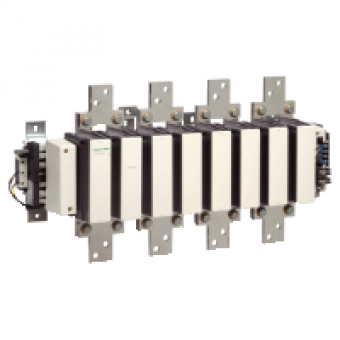

LC1F7804 - TeSys F contactor - 4P(4 NO) - AC-1 - <= 440 V 1600 A - without coil, Schneider Electric
- Product Code: LC1F7804
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4,646.57 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
CONTACTOR
product name
TESYS F
device short name
LC1F
contactor application
RESISTIVE LOAD
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
4P
power pole contact composition
4 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
1600 A <= 40 C AT <= 440 V AC AC-1
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
1600 A AT <= 40 DC
Irms rated making capacity
7800 A AC CONFORMING TO IEC 60947-4-1
rated breaking capacity
6240 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
3000 A <= 40 DC 3 MIN
associated fuse rating
800 A AM AT <= 440 V
average impedance
0.1 MOHM AT 50 HZ - ITH 1600 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
250 W AC-1
connections - terminals
power circuit : bar 2 x ( 100 x 5 mm)
tightening torque
power circuit : 58 N.m
mounting support
PLATE
mechanical robustness
SHOCKS CONTACTOR CLOSED 15 GN FOR 11 MS
height
434 MM
width
862 MM
depth
255 MM
product weight
48 KG
compatibility code
LC1F
The Schneider Electric LC1F7804 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
