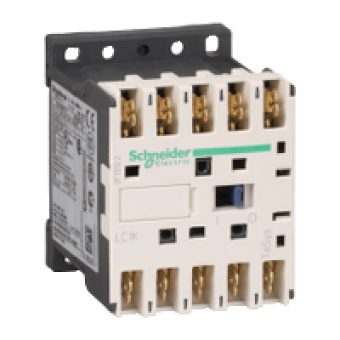

LC1K090087M7 - TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 220...230 V AC coil, Schneider Electric
- Product Code: LC1K090087M7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS K
range
TESYS
product or component type
CONTACTOR
product name
TESYS K
device short name
LC1K
device application
CONTROL
contactor application
RESISTIVE LOAD
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
4P
power pole contact composition
2 NO + 2 NC
[Ue] rated operational voltage
690 V AC 5060 HZ FOR POWER CIRCUIT
[Ie] rated operational current
20 A <= 50 C AT <= 440 V AC AC-1 FOR POWER CIRCUIT
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
220..230 V AC 5060 HZ
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
20 A AT <= 50 C FOR POWER CIRCUIT
Irms rated making capacity
110 A AC FOR POWER CIRCUIT CONFORMING TO NF C 63-110
rated breaking capacity
110 A AT 415 V CONFORMING TO IEC 60947
[Icw] rated short-time withstand current
90 A <= 50 C 1 S POWER CIRCUIT
associated fuse rating
25 A GG AT <= 440 V FOR POWER CIRCUIT
average impedance
3 MOHM AT 50 HZ - ITH 20 A FOR POWER CIRCUIT
[Ui] rated insulation voltage
600 V FOR POWER CIRCUIT CONFORMING TO UL 508
inrush power in VA
30 VA AT 20 DC
hold-in power consumption in VA
4.5 VA AT 20 DC
heat dissipation
1.3 W
control circuit voltage limits
0.8...1.15 UC AT <= 50 C OPERATIONAL
connections - terminals
FASTON TERMINALS 2 2.8 MM
operating rate
3600 CYCH
signalling circuit frequency
<= 400 HZ
mounting support
PLATE
operating time
10...20 MS COIL DE-ENERGISATION AND NO OPENING
safety reliability level
B10D = 1369863 CYCLES CONTACTOR WITH NOMINAL LOAD CONFORMING TO ENISO 13849-1
mechanical durability
10 MCYCLES
electrical durability
0.18 MCYCLES 20 A AC-1 AT UE <= 440 V
mechanical robustness
SHOCKS CONTACTOR CLOSED ON X AXIS 10 GN FOR 11 MS IEC 60068-2-27
height
58 MM
width
45 MM
depth
57 MM
product weight
0.18 KG
compatibility code
LC1K
