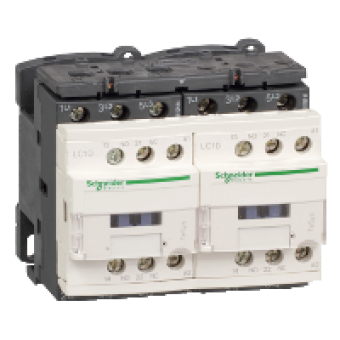

LC2D18G7V - REVERSING CONTACTOR 575VAC 18A IEC, Schneider Electric
- Product Code: LC2D18G7V
- Brand: Schneider Electric
- Availability: To be confirmed
- € 99.83 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
product name
TESYS D
product or component type
REVERSING CONTACTOR
device short name
LC2D
contactor application
MOTOR CONTROL
utilisation category
AC-1
device presentation
PREASSEMBLED W RVSNG POWER BSB
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 690 V AC 25...400 HZ FOR POWER CIRCUIT
[Ie] rated operational current
18 A <= 60 C AT <= 440 V AC AC-3 FOR POWER CIRCUIT
motor power kW
4 KW AT 220..230 V AC 5060 HZ
motor power HP (UL / CSA)
1 HP AT 115 V AC 5060 HZ FOR 1 PHASE MOTORS
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
120 V AC 5060 HZ
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947
overvoltage category
III
[Ith] conventional free air thermal current
10 A AT <= 60 C FOR SIGNALLING CIRCUIT
Irms rated making capacity
140 A AC FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1
rated breaking capacity
300 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Icw] rated short-time withstand current
40 A <= 40 C 10 MIN POWER CIRCUIT
associated fuse rating
10 A GG FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1
average impedance
2.5 MOHM AT 50 HZ - ITH 32 A FOR POWER CIRCUIT
[Ui] rated insulation voltage
690 V FOR POWER CIRCUIT CONFORMING TO IEC 60947-4-1
electrical durability
1.65 MCYCLES 18 A AC-3 AT UE <= 440 V
power dissipation per pole
0.8 W AC-3
safety cover
WITH
interlocking type
ELECTRICAL AND MECHANICAL
mounting support
PLATE
standards
CSA C22.2 NO 14
product certifications
BV
connections - terminals
control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
tightening torque
power circuit : 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
operating time
12..22 MS CLOSING
safety reliability level
B10D = 1369863 CYCLES CONTACTOR WITH NOMINAL LOAD CONFORMING TO ENISO 13849-1
mechanical durability
15 MCYCLES
operating rate
3600 CYCH AT <= 60 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.3...0.6 UC DROP-OUT AT 60 C AC 5060 HZ
inrush power in VA
70 VA AT 20 C COS 0.75 60 HZ
hold-in power consumption in VA
7.5 VA AT 20 C COS 0.3 60 HZ
heat dissipation
2..3 W AT 5060 HZ
auxiliary contacts type
TYPE MECHANICALLY LINKED 1 NO + 1 NC CONFORMING TO IEC 60947-5-1
signalling circuit frequency
25..400 HZ
minimum switching current
5 MA FOR SIGNALLING CIRCUIT
minimum switching voltage
NO RENDITION
non-overlap time
1.5 MS ON DE-ENERGISATION BETWEEN NC AND NO CONTACT
insulation resistance
> 10 MOHM FOR SIGNALLING CIRCUIT
contact compatibility
M2
compatibility code
LC2D
