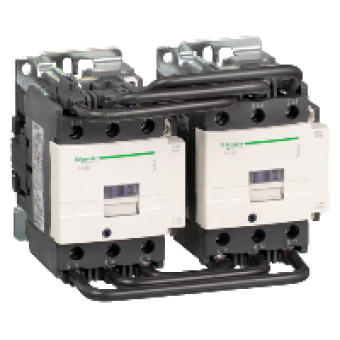

LC2D80F7 - TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 110 V AC coil, Schneider Electric
- Product Code: LC2D80F7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 389.74 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
product name
TESYS D
product or component type
REVERSING CONTACTOR
device short name
LC2D
contactor application
MOTOR CONTROL
utilisation category
AC-1
device presentation
PREASSEMBLED W RVSNG POWER BSB
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 25...400 HZ FOR POWER CIRCUIT
[Ie] rated operational current
125 A <= 60 C AT <= 440 V AC AC-1 FOR POWER CIRCUIT
motor power kW
22 KW AT 220...230 V AC 5060 HZ
motor power HP (UL / CSA)
20 HP AT 200208 V AC 5060 HZ FOR 3 PHASES MOTORS
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
110 V AC 5060 HZ
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
8 KV CONFORMING TO IEC 60947
overvoltage category
III
[Ith] conventional free air thermal current
10 A AT <= 60 C FOR SIGNALLING CIRCUIT
Irms rated making capacity
140 A AC FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1
rated breaking capacity
1100 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Icw] rated short-time withstand current
135 A <= 40 C 10 MIN POWER CIRCUIT
associated fuse rating
10 A GG FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1
average impedance
at 50 Hz - Ith 125 A for power circuit
[Ui] rated insulation voltage
600 V FOR POWER CIRCUIT CERTIFICATIONS CSA
electrical durability
0.8 MCYCLES 125 A AC-1 AT UE <= 440 V
power dissipation per pole
12.5 W AC-1
safety cover
WITH
interlocking type
MECHANICAL
mounting support
PLATE
standards
CSA C22.2 NO 14
product certifications
BV
connections - terminals
control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
tightening torque
control circuit : 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
operating time
20..35 MS CLOSING
safety reliability level
B10D = 1369863 CYCLES CONTACTOR WITH NOMINAL LOAD CONFORMING TO ENISO 13849-1
mechanical durability
4 MCYCLES
operating rate
3600 CYCH AT <= 60 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.3...0.6 UC DROP-OUT AT 55 C AC 5060 HZ
inrush power in VA
245 VA AT 20 C COS 0.75 60 HZ
hold-in power consumption in VA
26 VA AT 20 C COS 0.3 60 HZ
heat dissipation
6..10 W AT 5060 HZ
auxiliary contacts type
TYPE MECHANICALLY LINKED 1 NO + 1 NC CONFORMING TO IEC 60947-5-1
signalling circuit frequency
25..400 HZ
minimum switching current
5 MA FOR SIGNALLING CIRCUIT
minimum switching voltage
NO RENDITION
non-overlap time
1.5 MS ON DE-ENERGISATION BETWEEN NC AND NO CONTACT
insulation resistance
> 10 MOHM FOR SIGNALLING CIRCUIT
contact compatibility
M11
compatibility code
LC2D
motor power range
15...25 KW 200...240 V 3 PHASES
motor starter type
REVERSING CONTACTOR
contactor coil voltage
110 V AC STANDARD
