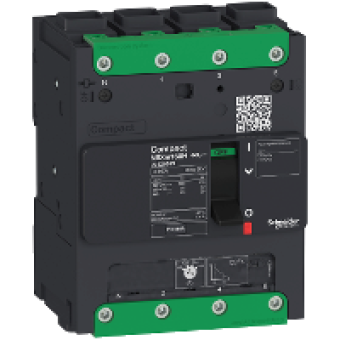

LV426229 - circuit breaker Compact NSXm 160A 4P 25kA at 380/415V(IEC) EverLink lug, Schneider Electric
- Product Code: LV426229
- Brand: Schneider Electric
- Availability: To be confirmed
- € 192.65 Ex Tax:
MAIN CHARACTERISTICS
range
COMPACT
range of product
COMPACT
product name
COMPACT NSXM
device short name
NSXM 160B
product or component type
CIRCUIT BREAKER
device application
DISTRIBUTION
COMPLEMETARY CHARACTERISTICS
[In] rated current
160 A
poles description
4P 4D
neutral position
LEFT
control type
TOGGLE
mounting mode
BY SCREWS FOR PLATE
network type
AC
network frequency
50 60 HZ
performance level
B
[Icu] rated ultimate breaking capacity
50 KA AT 220...240 V AC 5060 HZ ACCORDING TO IEC 60947-2
[Ue] rated operational voltage
690 V AC 5060 HZ ACCORDING TO IEC 60947-2
[Ics] rated service breaking capacity
50 KA AT 220...240 V AC 5060 HZ ACCORDING TO IEC 60947-2
[Uimp] rated impulse withstand voltage
8 KV ACCORDING TO IEC 60947-2
[Ui] rated insulation voltage
800 V ACCORDING TO IEC 60947-2
trip unit technology
THERMAL-MAGNETIC
trip unit name
TM-D
trip unit protection functions
LI
trip unit rating
160 A AT 40 C
protection type
OVERLOAD PROTECTION THERMAL
long time pick-up adjstment type Ir
ADJUSTABLE
long time pick-up adjustment range
0.7..1 X IN
long time delay adjustment type
FIXED
short-time pick-up adjustment type Isd
FIXED
short-time delay adjustment type
FIXED
magnetic hold current
1000 A
magnetic tripping current
1500 A
suitability for isolation
YES ACCORDING TO IEC 60947-2
utilisation category
A
9 mm pitches
12 MODULE
connection pitch
35 MM WITH SPREADERS
connections - terminals
1 EVERLINK LUG 2.5...70 MM FLEXIBLE CONDUCTOR COPPER
tightening torque
5 N.M FOR 2.5...10 MM
local signalling
GREEN FLAG FOR PRESENCE OF AUXILIARY CONTACTS
number of slots
1 SLOT S FOR AUXILIARY SWITCH OF
Power wire stripping length
20 MM
