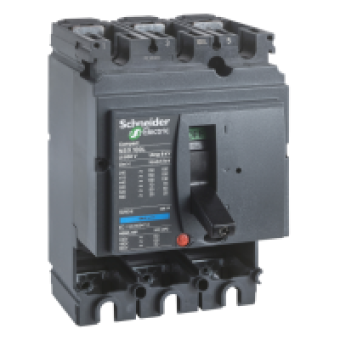

LV429018 - circuit breaker Compact NSX100S - 100 A - 3 poles - without trip unit, Schneider Electric
- Product Code: LV429018
- Brand: Schneider Electric
- Availability: To be confirmed
- € 168.19 Ex Tax:
MAIN CHARACTERISTICS
range
COMPACT
range of product
NSX100..250
product name
COMPACT NSX
product or component type
BASIC FRAME
device short name
COMPACT NSX100S
device application
DISTRIBUTION
circuit breaker name
COMPACT NSX100S
poles description
3P
network type
AC
network frequency
50 60 HZ
[In] rated current
100 A 40 DC
[Ui] rated insulation voltage
800 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Uimp] rated impulse withstand voltage
8 KV CONFORMING TO IEC 60947-2
[Ue] rated operational voltage
AC 5060 HZ CONFORMING TO IEC 60947-2
breaking capacity code
S
breaking capacity
100 KA ICU AT 380415 V AC 5060 HZ CONFORMING TO IEC 60947-2
suitability for isolation
YES CONFORMING TO EN 60947-2
utilisation category
A
pollution degree
3 CONFORMING TO IEC 60947-1
COMPLEMETARY CHARACTERISTICS
control type
TOGGLE
mounting mode
FIXED
mounting support
BACKPLATE
upside connection
FRONT
downside connection
FRONT
protection type
WITHOUT PROTECTION
mechanical durability
50000 CYCLES CONFORMING TO IEC 60947-2
electrical durability
10000 CYCLES 690 V AC 5060 HZ IN CONFORMING TO IEC 60947-2
connection pitch
35 MM
compatibility code
NSX100
