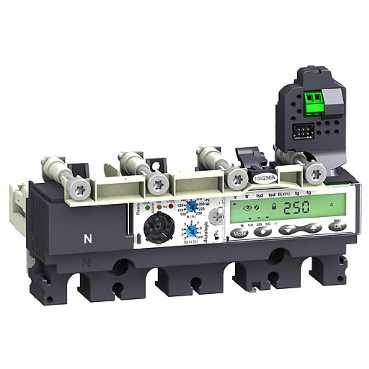

LV429141 - trip unit - Micrologic 6.2 E - 40 A - 4 poles 4d, Schneider Electric
- Product Code: LV429141
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
COMPACT
range of product
NSX100..250
product name
MICROLOGIC
product or component type
CONTROL UNIT
range compatibility
COMPACT NSX100
device application
DISTRIBUTION
poles description
4P
protected poles description
3T
neutral position
LEFT
network type
AC
network frequency
50 60 HZ
trip unit name
MICROLOGIC 6.2 E
trip unit technology
ELECTRONIC
trip unit protection functions
LSIG
trip unit rating
40 A 40 C
protection type
GROUND FAULT PROTECTION
COMPLEMETARY CHARACTERISTICS
mounting mode
FIXED
[Ue] rated operational voltage
690 V AC 5060 HZ
neutral protection setting
0.5 X IR 3T + N2
long time pick-up adjstment type Ir
ADJUSTABLE
long time pick-up adjustment range
18..40 A
long time delay adjustment type
ADJUSTABLE
[tr] long-time delay adjustment range
15..400 S 1.5 X IR
thermal memory
20 MINUTES BFR+AFTER TRIPPING
short-time pick-up adjustment type Isd
ADJUSTABLE
[Isd] short-time pick-up adjustment range
1.5..10 X IR
short-time delay adjustment type
ADJUSTABLE
[tsd] short-time delay adjustment range
0...0.4 S
instantaneous pick-up adjustment type Ii
ADJUSTABLE
instantaneous pick-up adjustment range
1.5..12 X IN COMPACT NSX250
ground-fault time delay adjustment type -tg
ADJUSTABLE
ground-fault pick-up adjustment type
ADJUSTABLE
[tg] ground-fault time delay adjustment range
0...0.4 S
[Ig] ground-fault pick-up adjustment range
0.4..1 X IN
zone selective interlocking ZSI
WITH
communication of data
DEMAND CURRENT AND POWER
display type
LCD DISPLAY
type of measurement
ENERGY METER
electrical data recording
MAINTENANCE INDICATORS
