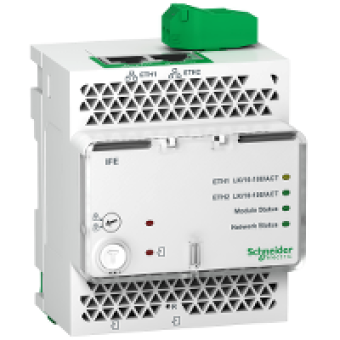

LV434010 - Module IFE - Modbus TCP - No Gateway, Schneider Electric
- Product Code: LV434010
- Brand: Schneider Electric
- Availability: To be confirmed
- € 242.82 Ex Tax:
MAIN CHARACTERISTICS
range
ENERLIN X
range of product
MASTERPACT NT
device short name
IFE
product or component type
COMMUNICATION MODULE
range compatibility
COMPACT COMPACT NS630B...1600
offer type
C4
product compatibility
COMPACT NS630B..1600
COMPLEMETARY CHARACTERISTICS
communication network type
Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10, 100 Mbit/s on 2-port RJ45
web server
EMBEDDED HTTP SERVER
mounting mode
BY CLIPS
mounting support
35 MM DIN RAIL
control type
BY SOFTWARE
[Us] rated supply voltage
24 V DC - 20..10
supply current
<= 3 A
current consumption
120 MA
electromagnetic compatibility
electrostatic discharge immunity test conforming to EN/IEC 61000-4-3
connections - terminals
RJ45 CONNECTOR
product certifications
CE
standards
IEC 60947-6-2
height
105 MM
width
72 MM
depth
71 MM
product weight
182.5 G
accessory / separate part category
SPARE PART COMPACT NS630B...1600
compatibility code
IFE
