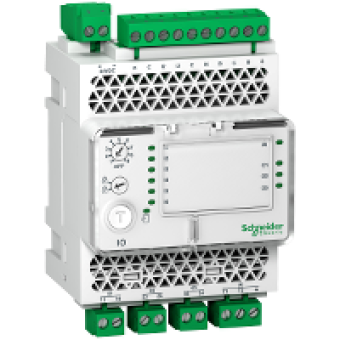

LV434063 - Module I/O (6DI 3O/P 1AI), Schneider Electric
- Product Code: LV434063
- Brand: Schneider Electric
- Availability: To be confirmed
- € 234.56 Ex Tax:
MAIN CHARACTERISTICS
range
ENERLIN X
range of product
MASTERPACT NT
device short name
I O
product or component type
I O MODULE
range compatibility
MASTERPACT MASTERPACT NT
offer type
C4
product name
ENERLIN X IO
COMPLEMETARY CHARACTERISTICS
communication network type
Universal Logic Plug on 2 RJ45 connectors
[Us] rated supply voltage
24 V DC - 20..10
current consumption
165 MA
electromagnetic compatibility
ELECTROSTATIC DISCHARGE IMMUNITY TEST ACCORDING TO EN IEC 61000-4-3
number of inputs
6 DIGITAL
input type
digital at state 1 : 19.8...25.2 V - DC - 6.1...8.8 mA
number of outputs
3 digital
output type
digital : 250 V - AC - 5 A
cable length
10 M
mounting mode
BY CLIPS
mounting support
35 MM DIN RAIL
control type
BY SOFTWARE
time delay
0..20 S
vibration frequency
-5...8.4 HZ
connections - terminals
SCREW TERMINAL BLOCK
product certifications
CE
standards
IEC 60947-6-2
depth
70.6 MM
height
116 MM
width
71.7 MM
product weight
229.5 G
compatibility code
I O
accessory / separate part category
SPARE PART COMPACT NS630B...1600
