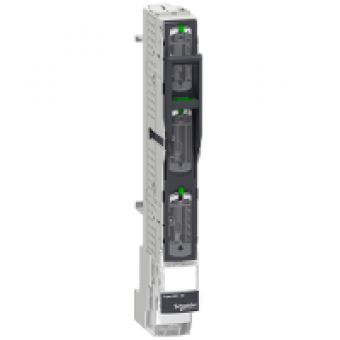

LV480851 - ISFL160 60mm busbar hook terminal 95mm² - fuse switch-disconnector, Schneider Electric
- Product Code: LV480851
- Brand: Schneider Electric
- Availability: To be confirmed
- € 88.13 Ex Tax:
MAIN CHARACTERISTICS
range of product
ISFL160
range
FUPACT
product name
FUPACT ISFL
device short name
ISFL160
product or component type
FUSE-SWITCH DISCONNECTOR
device application
PROTECTION
signalling function
SEPARATED FUSE MONITOR
COMPLEMETARY CHARACTERISTICS
poles description
1 X 3P SWITCHABLE
protected poles description
1 X 3F
fuse type
DIN
fuse size
NH00
network type
AC
network frequency
50 60 HZ
control type
FUSE CARRIERS HANDLE
provision for padlocking
PADLOCKABLE
mounting mode
VERTICAL
mounting support
BUSBARS
mounting location
ONE ABOVE THE OTHER
[Ie] rated operational current
AC-22B : 160 A AC 50/60 Hz 220/240 V
[Ith] conventional free air thermal current
160 A 40 DC HORIZONTAL
[Ithe] conventional enclosed thermal current
160 A 40 C POWER DISSIPATION PER FUSE 12 W VERTICAL - HORIZONTAL
rated duty
UNINTERRUPTED
[Ui] rated insulation voltage
800 V AC 5060 HZ CONFORMING TO EN 60947-3
[Uimp] rated impulse withstand voltage
8 KV
[Ue] rated operational voltage
690 V AC 5060 HZ
[Im] rated making and breaking capacity
ICM 210 A CONFORMING TO ENIEC 60947-3 415 V
suitability for isolation
YES CONFORMING TO IEC EN 60947-3
contact position indicator
NO
visible break
YES
contact operation
SINGLE BREAK
