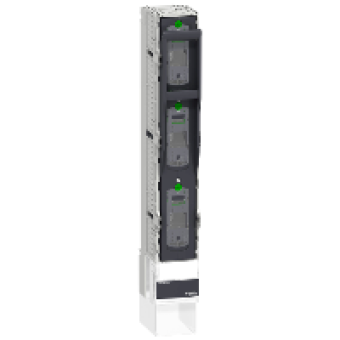

LV480856 - ISFL250 direct 185mm busbar screws M12 - fuse switch-disconnector, Schneider Electric
- Product Code: LV480856
- Brand: Schneider Electric
- Availability: To be confirmed
- € 223.90 Ex Tax:
MAIN CHARACTERISTICS
range of product
ISFL250..630
range
FUPACT
product name
FUPACT ISFL
device short name
ISFL250
product or component type
FUSE-SWITCH DISCONNECTOR
device application
PROTECTION
signalling function
SEPARATED FUSE MONITOR
COMPLEMETARY CHARACTERISTICS
poles description
1 X 3P SWITCHABLE
protected poles description
1 X 3F
fuse type
DIN
fuse size
NH1
network type
AC
network frequency
50 60 HZ
control type
FUSE CARRIERS HANDLE
provision for padlocking
PADLOCKABLE
mounting mode
VERTICAL
mounting support
BUSBARS
mounting location
ONE ABOVE THE OTHER
[Ie] rated operational current
AC-21B : 250 A AC 50/60 Hz 220/240 V
[Ith] conventional free air thermal current
250 A 40 C POWER DISSIPATION PER FUSE 23 W VERTICAL
[Ithe] conventional enclosed thermal current
250 A 40 C POWER DISSIPATION PER FUSE 23 W VERTICAL
rated duty
UNINTERRUPTED
[Ui] rated insulation voltage
800 V AC 5060 HZ CONFORMING TO EN 60947-3
[Uimp] rated impulse withstand voltage
12 KV CONFORMING TO IEC 947-3
[Ue] rated operational voltage
690 V AC 5060 HZ
[Im] rated making and breaking capacity
ICN 100 A 690 V
suitability for isolation
YES
contact position indicator
NO
visible break
YES
contact operation
SINGLE BREAK
