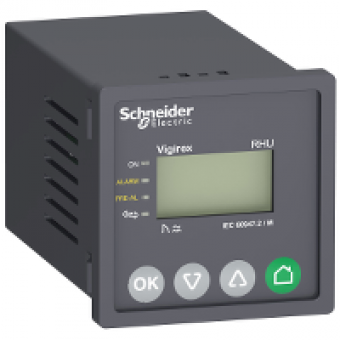

LV481001 - Earth-leakage relay RHUs - 0.03..30 A - 0..5 s - 240 V, Schneider Electric
- Product Code: LV481001
- Brand: Schneider Electric
- Availability: To be confirmed
- € 303.59 Ex Tax:
MAIN CHARACTERISTICS
range
VIGIREX
range of product
VIGIREX
device short name
RHUS
product or component type
RESIDUAL CRRT PROTECTION RELAY
range compatibility
VIGIREX RHUS TOA EARTH LEAKAGE CURRENT SENSOR
relay application
MONITORING RELAY
COMPLEMETARY CHARACTERISTICS
network rated voltage
1000 V AC 50...400 HZ
earthing system
IT
[Us] rated supply voltage
220...240 V AC AT 50...400 HZ - 15...10
power consumption in VA
8 VA
type of measurement
EARTH FAULT CURRENT INTERNAL MEASUREMENT 20...200 +- 20
refresh time
0.5 S
threshold setting
0.015...1 A ADJUSTABLE IN STEP OF 0.001 A PRE-ALARM
residual earth-leakage time delay adjustment type
ADJUSTABLE 0...4.5 S ADJUSTABLE IN STEP OF 10 MS PRE-ALARM
type of setting
KEYPAD
signal contacts composition
1 CO ALARM FAIL-SAFE
test function
LOCAL
[Ithe] conventional enclosed thermal current
8 A
minimum load
10 MA AT 12 V
[Ie] rated operational current
6 A AC-12 24 V AC STANDARD
cut-out dimensions
68 X 68 MM
product weight
0.3 KG
IP degree of protection
IP40 FRONT FACE CONFORMING TO IEC 60529
IK degree of protection
IK07 CONFORMING TO EN 50102
mechanical robustness
VIBRATIONS 13.2...100 HZ 0.7 G
tamperproof of settings
PROTECTED BY ACCESS CODE
mounting support
PANEL
height
72 MM
width
72 MM
depth
117 MM
connections - terminals
TERMINAL BLOCK ALARM CIRCUIT 0.2...2.5 MM FLEXIBLE AWG 22...AWG 12
wire stripping length
ALARM CIRCUIT 6 MM
tightening torque
alarm circuit : 0.5 N.m
compatibility code
RH86M
