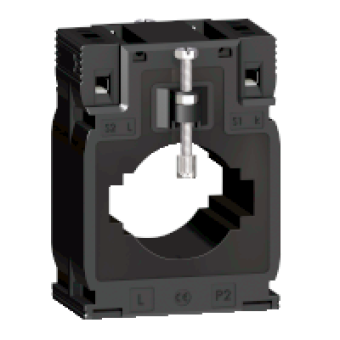

METSECT5MD060 - current transformer tropicalised DIN mount 600 5 cables d. 40 - bars 12x50 20x40, Schneider Electric
- Product Code: METSECT5MD060
- Brand: Schneider Electric
- Availability: To be confirmed
- € 26.99 Ex Tax:
MAIN CHARACTERISTICS
range
POWERLOGIC
range of product
POWERLOGIC CT
product name
CT
product or component type
CURRENT TRANSFORMER
secondary current
5 A
accuracy class
class 0.5 maximum power: 6 VA
[In] rated current
600 A
COMPLEMETARY CHARACTERISTICS
current transformer type
TROPICALISED FOR BUSBAR+CABLE
current transformer ratio
600 5
[Ith] conventional free air thermal current
36 KA
dynamic withstand current
2.5 ITH
safety factor
<= 5
[Ue] rated operational voltage
< 720 V AC at 50/60 Hz
[Ui] rated insulation voltage
3 KV
mounting mode
BY SCREWS
mounting support
BUSBAR
width
70 mm outside
height
95 mm outside
depth
45 mm outside
diameter
40 mm
product weight
0.349 KG
[Uimp] rated impulse withstand voltage
3 kV
electrical insulation class
CLASS B
opening of bars
50.5 X 12.5
cable outer diameter
40 mm max
sealing
WITHOUT
compatibility code
MD
