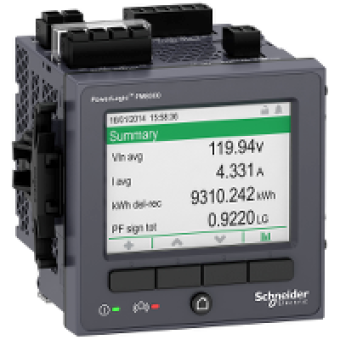

METSEPM8243 - PowerLogic PM8000 - PM8243 DIN rail mount meter - intermediate metering, Schneider Electric
- Product Code: METSEPM8243
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,126.69 Ex Tax:
MAIN CHARACTERISTICS
range
POWERLOGIC
product name
POWERLOGIC PM8000
device short name
PM8243
product or component type
POWER METER
market segment
SUB FEEDER IN BUILDINGS LARGE BUILDING FOR BILLING ENERGY COST MANAGEMENT
COMPLEMETARY CHARACTERISTICS
power quality analysis
COMPLIANCE REPORT EN 50160
device application
WAGES METERING
type of measurement
CURRENT
supply voltage
90...415 V AC +- 10 45...65 HZ
network frequency
50 HZ
[In] rated current
1 A
poles description
1P+N
power consumption in VA
NO RENDITION
max power consumption in VA
NO RENDITION
display type
WITHOUT DISPLAY
sampling rate
256 SAMPLES CYCLE
measurement current
50...10000 MA
analogue input type
current (impedance 0.3 mOhm)
measurement voltage
57...400 V AC 42...69 HZ BETWEEN PHASE AND NEUTRAL
frequency measurement range
42...69 HZ
number of inputs
3 DIGITAL 30 V AC
measurement accuracy
+- 0.1 CURRENT
accuracy class
class 0.2S (active energy according to IEC 62053-22)
number of outputs
1 PULSE
information displayed
VOLTAGE
communication port protocol
MODBUS RTU 2-WIRE 115 KBAUDS
communication port support
ETHERNET
data recording
DATA LOGS
memory capacity
512 MB
web services
ALARM NOTIFICATION BY E-MAIL
communication service
NTP TIME SYNCHRONIZATION
mounting mode
CLIP-ON
mounting support
DIN RAIL
installation category
III
Safety Construction
IEC 61010-1 CAT III 400...690 V ED. 3
standards
IEC 61557-12
product certifications
CE
width
90.5 MM
depth
90.8 MM
height
90.5 MM
product weight
528 G
