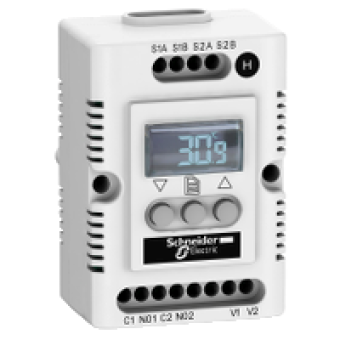

NSYCCOHY230VID - Climasys CC - electronic hygrostat - 200…240 V - Hr 20…80% - OLED screen, Schneider Electric
- Product Code: NSYCCOHY230VID
- Brand: Schneider Electric
- Availability: To be confirmed
- € 57.91 Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CLIMASYS CC
product or component type
ELECTRONIC HYGROSTAT
humidity setting range
20...80
display type
OLED SCREEN
information displayed
RELATIVE HUMIDITY
COMPLEMETARY CHARACTERISTICS
input voltage
200...240 V AC
maximum switching capacity
4 A 230 V AC
electrical connection
6 TERMINALS 2.5 MM
mounting mode
BY SCREWS
height
external : 85 mm
width
external : 56 mm
depth
external : 44 mm
mounting location
ON MOUNTING PLATE
ambient air temperature for operation
-40...80 C
hysteresis
3
number of outputs
2 OUTPUTS HEATING FUNCTION
material
PC
colour
LIGHT GREY
flame retardance
SELF-EXTINGUISHING CONFORMING TO UL94 MATERIAL V0
product certifications
UR
