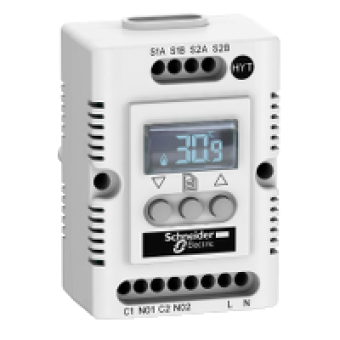

NSYCCOHYT30VID - Climasys CC - electronic hygrotherm - 9 -30V - temp -40…80°C - Hr 20…80%, Schneider Electric
- Product Code: NSYCCOHYT30VID
- Brand: Schneider Electric
- Availability: To be confirmed
- € 74.04 Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CLIMASYS CC
product or component type
ELECTRONIC HYGROTHERM
temperature setting range
-40...80 C
humidity setting range
20...80
display type
OLED SCREEN
information displayed
RELATIVE HUMIDITY
COMPLEMETARY CHARACTERISTICS
input voltage
9..30 V ACDC
sensor type
OPTIONAL NTC EXTERNAL SENSOR
maximum switching capacity
4 A 30 V AC/DC
electrical connection
8 CONNECTORS 2.5 MM
mounting mode
BY SCREWS
height
external : 85 mm
width
external : 56 mm
depth
external : 44 mm
mounting location
ON MOUNTING PLATE
ambient air temperature for operation
-40...80 C
hysteresis
2 K PROGRAMMED VALUE
hysteresis
3
number of outputs
2 output(s) ventilation/heating function
material
PC
colour
LIGHT GREY
flame retardance
SELF-EXTINGUISHING CONFORMING TO UL94 MATERIAL V0
product certifications
UR
The Schneider Electric NSYCCOHYT30VID is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
