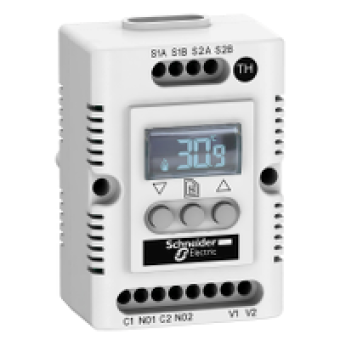

NSYCCOTH120VID - Climasys CC - Electronical thermostat 95...135V - range of temperature -40…80°C, Schneider Electric
- Product Code: NSYCCOTH120VID
- Brand: Schneider Electric
- Availability: To be confirmed
- € 43.32 Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CLIMASYS CC
product or component type
ELECTRONICAL THERMOSTAT
temperature setting range
-40...80 C
display type
OLED SCREEN
information displayed
TEMPERATURE IN DC
COMPLEMETARY CHARACTERISTICS
input voltage
90...140 V AC
sensor type
OPTIONAL NTC EXTERNAL SENSOR
maximum switching capacity
4 A 120 V AC
electrical connection
10 TERMINALS 2.5 MM
mounting mode
BY SCREWS
height
external : 85 mm
width
external : 56 mm
depth
external : 44 mm
mounting location
ON MOUNTING PLATE
ambient air temperature for operation
-40...80 C
hysteresis
2 K PROGRAMMED VALUE
number of outputs
2 output(s) ventilation/heating function
material
PC
colour
LIGHT GREY
flame retardance
SELF-EXTINGUISHING CONFORMING TO UL94 MATERIAL V0
product certifications
UR
