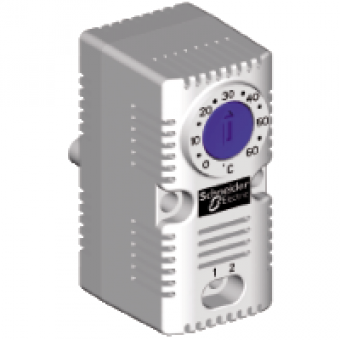

NSYCCOTHO - ClimaSys CC - simple thermostat 250V - range of temperature 0…60°C - NO - °C, Schneider Electric
- Product Code: NSYCCOTHO
- Brand: Schneider Electric
- Availability: To be confirmed
- € 10.44 Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CLIMASYS CC
product or component type
SIMPLE THERMOSTAT
temperature setting range
0...60 C
information displayed
TEMPERATURE IN DC
COMPLEMETARY CHARACTERISTICS
input voltage
250 V
sensor type
BIMETAL
contacts type and composition
NO
contact resistance
< 10 MOHM
service life in cycles
>= 100000 CYCLES
maximum switching capacity
2 A 120...250 V AC INDUCTIVE PF 0.6
electrical connection
4 TERMINALS 2.5 MM
mounting mode
CLIPPED
height
external : 68 mm
width
external : 33 mm
depth
external : 44 mm
product weight
40 G
mounting location
ON MOUNTING PLATE
ambient air temperature for operation
-20...80 C
IP degree of protection
IP20
hysteresis
7
number of outputs
1 output(s) ventilation function
material
PC
colour
LIGHT GREY
flame retardance
SELF-EXTINGUISHING CONFORMING TO UL94 MATERIAL V0
product certifications
UL
