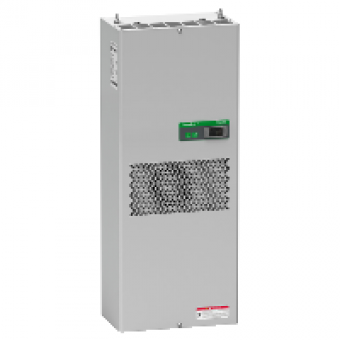

NSYCU1K2 - ClimaSys standard cooling unit side of enclosure - 1250W at 230 V, Schneider Electric
- Product Code: NSYCU1K2
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CU
product or component type
COOLING UNIT
mounting type
SIDE
type of installation
INDOOR
product destination
FOR ENCLOSURE
mounting mode
BY SCREWS
input voltage
230 V 5060 HZ
network number of phases
1 PHASE
cooling power
1250 W 50/60 Hz L35-L35
COMPLEMETARY CHARACTERISTICS
height
999 mm
width
405 MM
depth
237 mm
[In] rated current
3.8 A
inrush current
11 A
power consumption in W
650 W at 50/60 Hz, L35-L35
energy efficiency ratio
1.9
control type
ELECTRONIC CONTROLLER
temperature setting range
20...55 °C at 50 Hz
ambient air temperature for operation
20...46 °C, inside the enclosure
Noise level
65 dB conforming to EN/ISO 3746
pressure
25 BAR
Flow rate
internal circuit : 570 m3/h at 50/60 Hz
product weight
38 KG
cooling gas type
R134a (0.38 kg)
Type of filter
OPL EXTERNAL CIRCUIT FILTER
protection type
thermal protection : T 6 A
material
STEEL
colour
GREY RAL 7035
