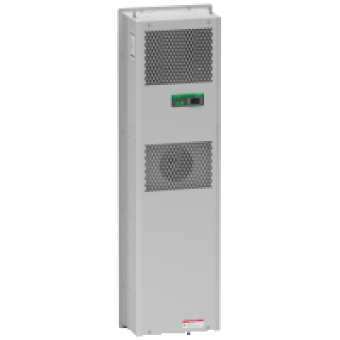

NSYCUSX3K23P4UL - ClimaSys indoor slim cooling unit block stainless steel - 3200W at 460 V - UL , Schneider Electric
- Product Code: NSYCUSX3K23P4UL
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CU
product or component type
SLIM COOLING UNIT BLOCK
mounting type
DOOR OF ENCLOSURE
type of installation
INDOOR
product destination
FOR ENCLOSURE
mounting mode
BY SCREWS
input voltage
460 V 60 HZ
network number of phases
3 PHASES
cooling power
10919 Btu/h 60 Hz L35-L35
COMPLEMETARY CHARACTERISTICS
height
1696 mm
width
495 MM
depth
235 MM
[In] rated current
3.1 A
inrush current
18 A
power consumption in W
1650 W at 60 Hz, L35-L35
energy efficiency ratio
1.9
control type
ELECTRONIC CONTROLLER
temperature setting range
20...50 °C
ambient air temperature for operation
50 °C, maximum
Noise level
69 dB conforming to EN/ISO 3746
pressure
28 BAR
Flow rate
internal circuit : 1450 m3/h at 60 Hz
product weight
80 KG
cooling gas type
R134a (1.25 kg)
Type of filter
OPL EXTERNAL CIRCUIT FILTER
protection type
thermal protection : T 6 A
material
STAINLESS STEEL
colour
GREY RAL 7035
