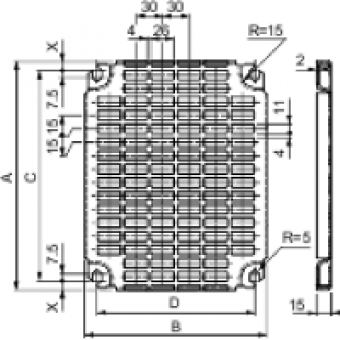

NSYMR1210 - Monobloc perforated plates H1200xW1000mm with universal perforations 11x26mm, Schneider Electric
- Product Code: NSYMR1210
- Brand: Schneider Electric
- Availability: To be confirmed
- € 90.59 Ex Tax:
MAIN CHARACTERISTICS
range
SPACIAL
accessory / separate part category
MOUNTING ACCESSORY
product or component type
MOUNTING PLATE
Application
MULTI-PURPOSE
For enclosure nominal dimensions
1200 MM W 1000 MM
mounting location
STEP SLIDE
mounting plate description
TELEQUICK PERFORATED
range compatibility
SPACIAL S3D
quantity per set
SET OF 1
material
STEEL
surface finish
ZINC COATED
COMPLEMETARY CHARACTERISTICS
fixing mode
SCREWED ON BACKSTUDS - SCREW TYPE M8
maximum load
250 KGM S3D CRN S3X ENCLOSURES
permanent permissible load
272.2 KG S3D CRN S3X ENCLOSURES
height
1145 MM
width
951 MM
surface and useful surface
108.9 DM
thickness
2 MM
product weight
7.8 KG
number of slots
2325
variant particularity
INST IN REAR OF ENCLOSURE
cut-out dimensions
11 X 26 MM
