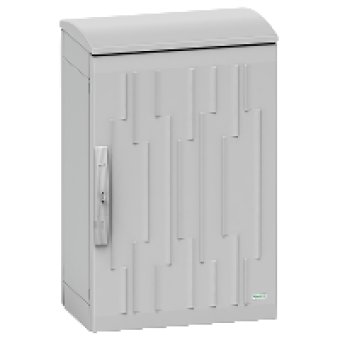

NSYPHDT753 - Thalassa PHD outdoor heavy duty-enclosure H788 W500 D320 IP65 anti-posting door, Schneider Electric
- Product Code: NSYPHDT753
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
Range
THALASSA
Product
THALASSA PHD
Application
OUTDOOR HEAVY DUTY
Certification
UL conforming to UL 508 A (2007)
Enclosure type
MULTI-PURPOSE
Category
SUITABLE ENCLOSURE
Version
PHDZT
Enclosure height with canopy
788 MM
Canopy height
38 MM
Enclosure width
500 MM
Enclosure depth
320 MM
enclosure mounting
WALL MOUNTED
device composition
1 body in polyester double reinforced with fibreglass
COMPLEMETARY CHARACTERISTICS
body type
SEALED ASSEMBLED BODY
door type
anti-posting
number of doors
1
door opening side
120 °
lock type
2 points lock, handle with 1242E key lock and padlock
accessibility for operation
FRONT
Maximum static load
180 KG
removable parts
DOOR BY HINGES
material
polyester double reinforced with fibreglass
colour
GREY RAL 7035
standards
IEC 62208
