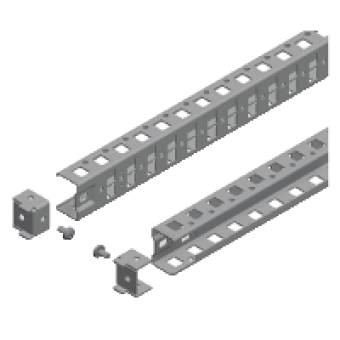

NSYSUCR40110 - Spacial SF/SM universal cross rails - 40 mm, Schneider Electric
- Product Code: NSYSUCR40110
- Brand: Schneider Electric
- Availability: To be confirmed
- € 50.27 Ex Tax:
MAIN CHARACTERISTICS
range
SPACIAL
accessory / separate part category
MOUNTING ACCESSORY
product or component type
UNIVERSAL CROSS RAIL
Application
MULTI-PURPOSE
For enclosure nominal dimensions
W 1100 MM
COMPLEMETARY CHARACTERISTICS
range compatibility
SPACIAL SPACIAL SF
mounting location
BETWEEN CROSS RAILS
mounting support
ADAPTATION PROFILE ON SM ENCLOSURES
device composition
FIXING ELEMENTS
quantity per set
SET OF 1
material
STEEL
surface finish
ZINC COATED
fixing mode
BY SCREWS
adjustment
ADJ WITH A PITCH OF 25 MM
number of horizontal rows
1
permanent permissible load
30 KG
height
nominal : 1100 mm
width
40 MM
depth
27 MM
thickness
1.5 MM
