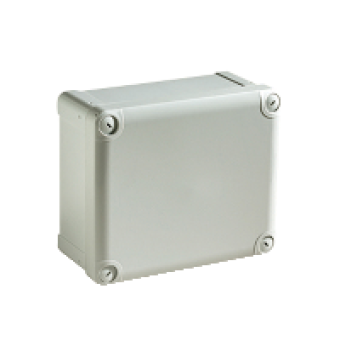

NSYTBP292412 - PC box IP66 IK08 RAL7035 Int.H275W225D120 Ext.H291W241D128 opaque PC cover H20, Schneider Electric
- Product Code: NSYTBP292412
- Brand: Schneider Electric
- Availability: To be confirmed
- € 23.51 Ex Tax:
MAIN CHARACTERISTICS
range
THALASSA
product name
THALASSA TBP
device application
MULTI-PURPOSE
Category
INDUSTRIAL BOX
height
291 MM
width
241 MM
depth
128 MM
internal height
275 MM
internal width
225 MM
internal depth
120 MM
enclosure mounting
WALL MOUNTED
device composition
1 X BODY
body type
ONE PIECE MOULDED
type of front cover
LOW PLAIN COVER
cover fixing
PLASTIC SCREWS
lock type
OUTSIDE SEALED AREA FLAT SCREWDRIVER CAPTIVE SCREW
removable parts
COVER BY CAPTIVE SCREWS
COMPLEMETARY CHARACTERISTICS
material
POLYCARBONATE
colour
GREY RAL 7035
standards
IEC 62208
product certifications
DEMKO
electrical insulation class
CLASS II
IP degree of protection
IP66 CONFORMING TO NEMA 4.4X
IK degree of protection
IK08 CONFORMING TO IEC 62262
fire resistance
960 DC
ambient air temperature for storage
-15...60 C
Operating temperature
-25...80 C
