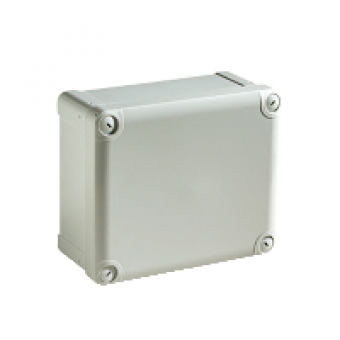

NSYTBS775 - ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10, Schneider Electric
- Product Code: NSYTBS775
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2.58 Ex Tax:
This product has a minimum quantity of 5
MAIN CHARACTERISTICS
range
THALASSA
product name
THALASSA TBS
device application
MULTI-PURPOSE
Category
INDUSTRIAL BOX
height
74 MM
width
74 MM
depth
54 MM
internal height
65 MM
internal width
65 MM
internal depth
47 MM
enclosure mounting
WALL MOUNTED
device composition
1 X BODY
quantity per set
SET OF 5
body type
ONE PIECE MOULDED
type of front cover
LOW PLAIN COVER
cover fixing
METAL SCREWS
lock type
OUTSIDE SEALED AREA FLAT SCREWDRIVER CAPTIVE SCREW
removable parts
COVER BY CAPTIVE SCREWS
COMPLEMETARY CHARACTERISTICS
material
ABS
colour
GREY RAL 7035
standards
IEC 62208
product certifications
DEMKO
electrical insulation class
CLASS II
IP degree of protection
IP66 CONFORMING TO NEMA 4.4X
IK degree of protection
IK07 CONFORMING TO IEC 62262
fire resistance
650 C CONFORMING TO IEC 60695-2-11
ambient air temperature for storage
-15...40 C
Operating temperature
-25...60 C
