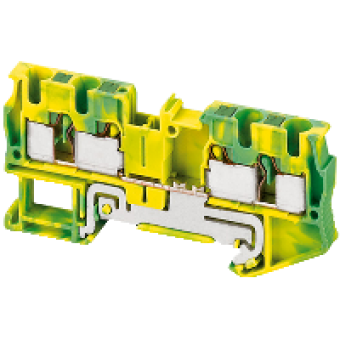

NSYTRP44PE - Linergy earth terminal block - 4mm² single-level 2x2 push-in - green-yellow, Schneider Electric
- Product Code: NSYTRP44PE
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4.19 Ex Tax:
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRP
terminal block type
PROTECTIVE EARTH
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
4 MM
length
77 MM
colour
GREEN-YELLOW
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
width
6.2 MM
height
36.5 MM
connections - terminals
2 X PUSH-IN DOWNSTREAM
number of connections
4
connection position
TOP
number of measurement input
2
cable cross section
0.08..6 MM SOLID
wire stripping length
12 MM
tool type
DISCONNECTION FLAT SCREWDRIVER
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 MΩ.m conforming to IEC 60093
surface resistance
1000 GΩ conforming to IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
17.2 G
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
