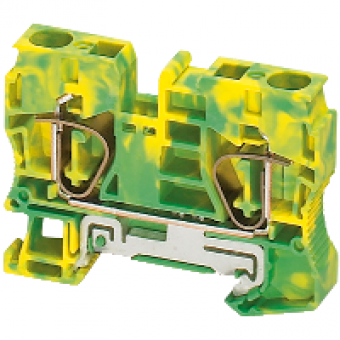

NSYTRR102PE - Linergy earth terminal block - 10mm² single-level 1x1 spring - green-yellow, Schneider Electric
- Product Code: NSYTRR102PE
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1.80 Ex Tax:
This product has a minimum quantity of 50
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRR
terminal block type
PROTECTIVE EARTH
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
10 MM
length
71.5 MM
colour
GREEN-YELLOW
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
width
10.2 MM
height
50.5 MM
connections - terminals
1 X SPRING TERMINAL UPSTREAM
number of connections
2
connection position
TOP
number of measurement input
2
cable cross section
0.2..25 MM SOLID
wire stripping length
18 MM
tool type
CONNECTION FLAT SCREWDRIVER
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 MΩ.m conforming to IEC 60093
surface resistance
1000 GΩ conforming to IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
33.9 G
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
