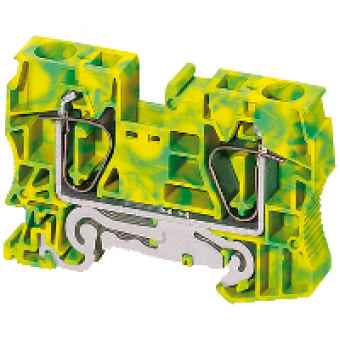

NSYTRR162PE - Linergy earth terminal block - 16mm² single-level 1x1 spring - green-yellow, Schneider Electric
- Product Code: NSYTRR162PE
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5.60 Ex Tax:
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRR
terminal block type
PROTECTIVE EARTH
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
16 MM
length
80 MM
colour
GREEN-YELLOW
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
width
12.2 MM
height
51 MM
connections - terminals
1 X SPRING TERMINAL UPSTREAM
number of connections
2
connection position
TOP
number of measurement input
2
cable cross section
0.2..25 MM SOLID
wire stripping length
18 MM
tool type
CONNECTION FLAT SCREWDRIVER
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 MΩ.m conforming to IEC 60093
surface resistance
1000 GΩ conforming to IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
51.2 G
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
