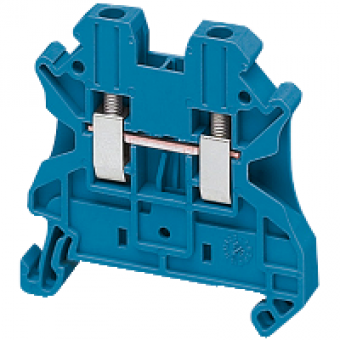

NSYTRV22BL - Linergy passthrough terminal block - 2.5mm² 24A single-level 1x1 screw - blue, Schneider Electric
- Product Code: NSYTRV22BL
- Brand: Schneider Electric
- Availability: To be confirmed
- € 0.39 Ex Tax:
This product has a minimum quantity of 50
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRV
accessory / separate part category
CONNECTION ACCESSORY
terminal block type
PASSTHROUGH
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
2.5 MM
length
47.7 MM
colour
BLUE
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
width
5.2 MM
height
47.5 MM
connections - terminals
1 X SCREW TERMINAL UPSTREAM M3
number of connections
2
connection position
SIDEWAYS
number of measurement input
2
cable cross section
0.14...4 MM SOLID WITH CABLE END
tightening torque
0.5..0.6 N.M
wire stripping length
9 MM
tool type
CONNECTION SCREWDRIVER
[Ue] rated operational voltage
1000 V CONFORMING TO ENIEC 60947-7-1
[Ie] rated operational current
24 A CONFORMING TO ENIEC 60947-7-1
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 MΩ.m conforming to IEC 60093
surface resistance
1000 GΩ conforming to IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
8.2 G
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
