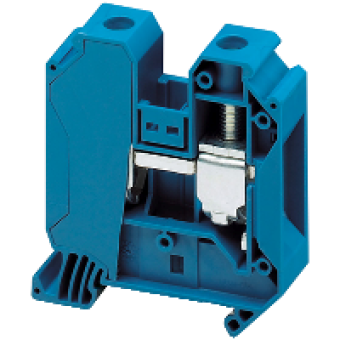

NSYTRV352BL - Linergy passthrough terminal block - 35mm² 125A single-level 1x1 screw - blue, Schneider Electric
- Product Code: NSYTRV352BL
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2.45 Ex Tax:
This product has a minimum quantity of 50
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRV
accessory / separate part category
CONNECTION ACCESSORY
terminal block type
PASSTHROUGH
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
35 MM
length
60.2 MM
colour
BLUE
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
width
16 MM
height
65.7 MM
connections - terminals
1 X SCREW TERMINAL UPSTREAM M6
number of connections
2
connection position
SIDEWAYS
number of measurement input
2
cable cross section
1.5...50 MM FLEXIBLE WITHOUT CABLE END
tightening torque
3.2..3.7 N.M
wire stripping length
18 MM
tool type
CONNECTION SCREWDRIVER
[Ue] rated operational voltage
1000 V CONFORMING TO ENIEC 60947-7-1
[Ie] rated operational current
125 A CONFORMING TO ENIEC 60947-7-1
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 MΩ.m conforming to IEC 60093
surface resistance
1000 GΩ conforming to IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
61 G
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
