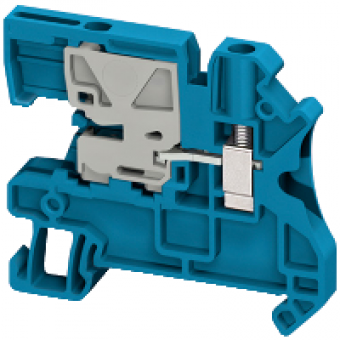

NSYTRV42NE - Linergy blade disc. block - 4mm² 32A single-level 1x1 screw - blue, Schneider Electric
- Product Code: NSYTRV42NE
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRV
terminal block type
NEUTRAL DISCONNECT
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
4 MM
length
55 MM
colour
BLUE
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
width
6.2 MM
height
47.5 MM
connections - terminals
1 X SCREW TERMINAL UPSTREAM
number of connections
2
connection position
SIDEWAYS
number of measurement input
1
cable cross section
0.2...4 MM FLEXIBLE WITH
tightening torque
0.6..0.8 N.M
wire stripping length
9 MM
[Ue] rated operational voltage
250 V CONFORMING TO ENIEC 60947-7-1
[Ie] rated operational current
32 A CONFORMING TO ENIEC 60947-7-1
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 .CM M.M CONFORMING TO IEC 60093
surface resistance
1000 MOHM G CONFORMING TO IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
11 G
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
