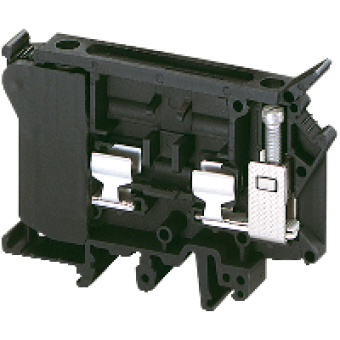

NSYTRV42SF6 - Fuse disc. terminal 16mm² 10A 6.3x32mm fuse 1x1 screw black, Schneider Electric
- Product Code: NSYTRV42SF6
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.05 Ex Tax:
This product has a minimum quantity of 50
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRV
device application
PROTECTION
terminal block type
FUSED DISCONNECT
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
16 MM
length
79 MM
colour
BLACK
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
fuse size
6.3 X 32 MM
width
10.2 MM
height
60.5 MM
connections - terminals
1 X SCREW TERMINAL UPSTREAM
number of connections
2
connection position
SIDEWAYS
number of measurement input
0
cable cross section
0.2..4 MM FLEXIBLE WITHOUT
tightening torque
0.6..0.8 N.M
wire stripping length
9 MM
tool type
CONNECTION SCREWDRIVER
[Ue] rated operational voltage
500 V CONFORMING TO ENIEC 60947-7-1
[Ie] rated operational current
10 A CONFORMING TO ENIEC 60947-7-1
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 .CM M.M CONFORMING TO IEC 60093
surface resistance
1000 MOHM G CONFORMING TO IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
34.2 G
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
