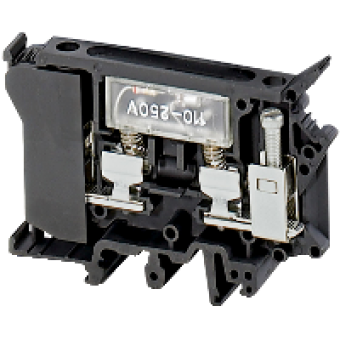

NSYTRV42SF6LA - Fuse disc. terminal 16mm² 10A 6.3x32mm fuse LED 110-250V 1x1 screw black, Schneider Electric
- Product Code: NSYTRV42SF6LA
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.78 Ex Tax:
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRV
terminal block type
FUSED DISCONNECT
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
16 MM
length
79 MM
colour
BLACK
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
fuse size
6.3 X 32 MM
width
10.2 MM
height
60.5 MM
connections - terminals
1 X SCREW TERMINAL UPSTREAM
number of connections
2
connection position
SIDEWAYS
number of measurement input
0
cable cross section
0.5..16 MM FLEXIBLE WITHOUT
tightening torque
0.6..0.8 N.M
wire stripping length
9 MM
tool type
CONNECTION SCREWDRIVER
[Ue] rated operational voltage
500 V CONFORMING TO ENIEC 60947-7-1
[Ie] rated operational current
10 A CONFORMING TO ENIEC 60947-7-1
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 M.M M.M CONFORMING TO IEC 60093
surface resistance
1000 G G CONFORMING TO IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
34.2 G
provided equipment
LIGHT INDICATOR 110..250 V
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
