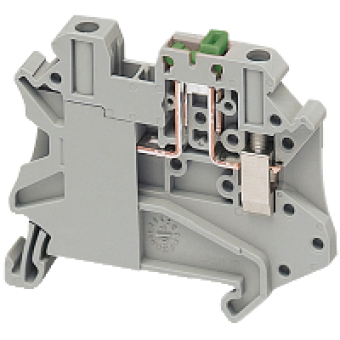

NSYTRV42STAR - Linergy blade disc. terminal block - 4mm² 20A single-level 1x1 screw - orange, Schneider Electric
- Product Code: NSYTRV42STAR
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2.01 Ex Tax:
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRV
terminal block type
BLADE DISCONNECT
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
4 MM
length
57.8 MM
colour
ORANGE
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
width
6.2 MM
height
49.1 MM
connections - terminals
1 X SCREW TERMINAL UPSTREAM
number of connections
2
connection position
SIDEWAYS
number of measurement input
2
cable cross section
0.14..6 MM FLEXIBLE WITHOUT
tightening torque
0.6..0.8 N.M
wire stripping length
9 MM
tool type
CONNECTION SCREWDRIVER
[Ue] rated operational voltage
500 V CONFORMING TO ENIEC 60947-7-1
[Ie] rated operational current
20 A CONFORMING TO ENIEC 60947-7-1
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 M.M M.M CONFORMING TO IEC 60093
surface resistance
1000 G G CONFORMING TO IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
13.8 G
provided equipment
TEST POINT
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
