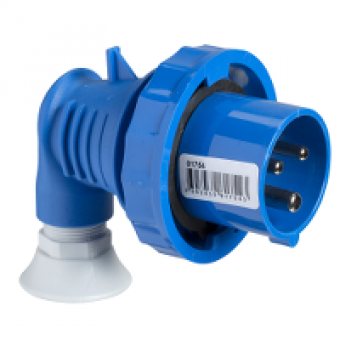

81754 - PratiKa wander plug - 90° angled - 16 A - 2P + E - 200...250 V AC - IP67, Schneider Electric
- Product Code: 81754
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.42 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA PLUG
product or component type
WANDER PLUG
device short name
PRATIKA PLUG
plug, socket category
LV
poles description
2P+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
plug, socket, control station shape
90 D ANGLED
[In] rated current
16 A
[Ue] rated operational voltage
200..250 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
NICKEL PLATED BRASS PINS
connections - terminals
CAPTIVE SCREWS
cable cross section
1...4 MM
cable outer diameter
8...15 MM
cable entry
CABLE GLAND
thread type
PG16
product weight
0.15 KG
height
110 MM
width
91 MM
depth
91 MM
colour
GREY RAL 7035
voltage colour
BLUE
compatibility code
PRATIKA PLUG
