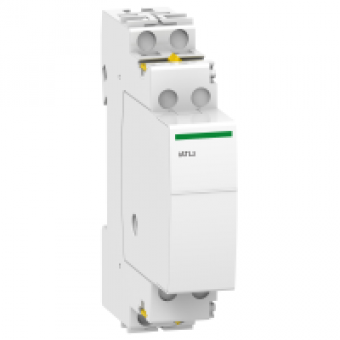

A9C15413 - Acti 9 control by illuminated push-buttons iATLz, Schneider Electric
- Product Code: A9C15413
- Brand: Schneider Electric
- Availability: To be confirmed
- € 9.25 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
ACTI 9
device short name
IATLZ
product or component type
IMPEDANCE ADAPTATION AUXILIARY
[Uc] control circuit voltage
130..240 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
remote control type
illuminated push-button 3 mA
mounting mode
FIXED ON LEFT SIDE OF TL
mounting support
DIN RAIL
9 mm pitches
2
height
81 MM
width
18 MM
depth
71 MM
colour
WHITE
connections - terminals
TUNNEL TYPE TERMINALS RIGID CABLE S 0.5...4 MM
wire stripping length
11 MM
tightening torque
1 N.M
product compatibility
ITL 16 A
market segment
RESIDENTIAL
