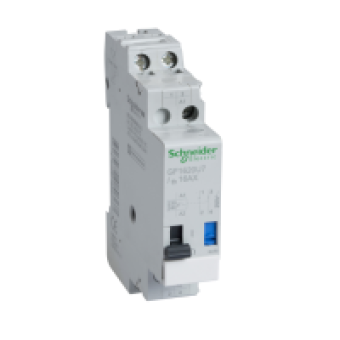

GF1620U7 - TeSys GF - impulse relay - 16 A - 2 NO - 230...240 V AC 50/60 Hz coil, Schneider Electric
- Product Code: GF1620U7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 23.36 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS GF
product or component type
IMPULSE RELAY
device short name
GF16
utilisation category
AC-1
poles description
2P
pole contact composition
2 NO
[Ie] rated operational current
16 A AC-1
[Ue] rated operational voltage
250 V AC 5060 HZ
permissible short-time rating
320 A <= 40 C - SHORT TIME CURRENT DURATION 1 S
operating position
+ - 90 D TO VERTICAL PLANE
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
230..240 V AC 5060 HZ
mounting mode
CLIP-ON
mounting support
35 MM SYMMETRICAL DIN RAIL
COMPLEMETARY CHARACTERISTICS
[Ith] conventional free air thermal current
16 A AT <= 50 DC
average impedance
4 MOHM AT 50 HZ - ITH 16 A
[Ui] rated insulation voltage
400 V - CONFORMING TO IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 KV IN ENCLOSURE
connections - terminals
control circuit : screw clamp terminals 1 cable 1.5 mm² - cable stiffness: solid - without cable end
tightening torque
control circuit : 0.8 N.m - on screw clamp terminals
operating time
70 MS CLOSING
operating rate
<= 900 CYCH
control circuit voltage limits
0.85...1.1 UC AT <= 50 C 5060 HZ
impulse duration
>= 70 MS
average consumption
19 VA FOR AC NETWORK 50 HZ AT UC AT 20 C
power dissipation per pole
1 W
mechanical durability
1 MCYCLES
electrical durability
100000 CYCLES ON AC-22
9 mm pitches
2
height
81 MM
width
18 MM
depth
64 MM
product weight
0.11 KG
quantity per set
SET OF 12
compatibility code
MODULAR IMPULSE RELAY
The Schneider Electric GF1620U7 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
